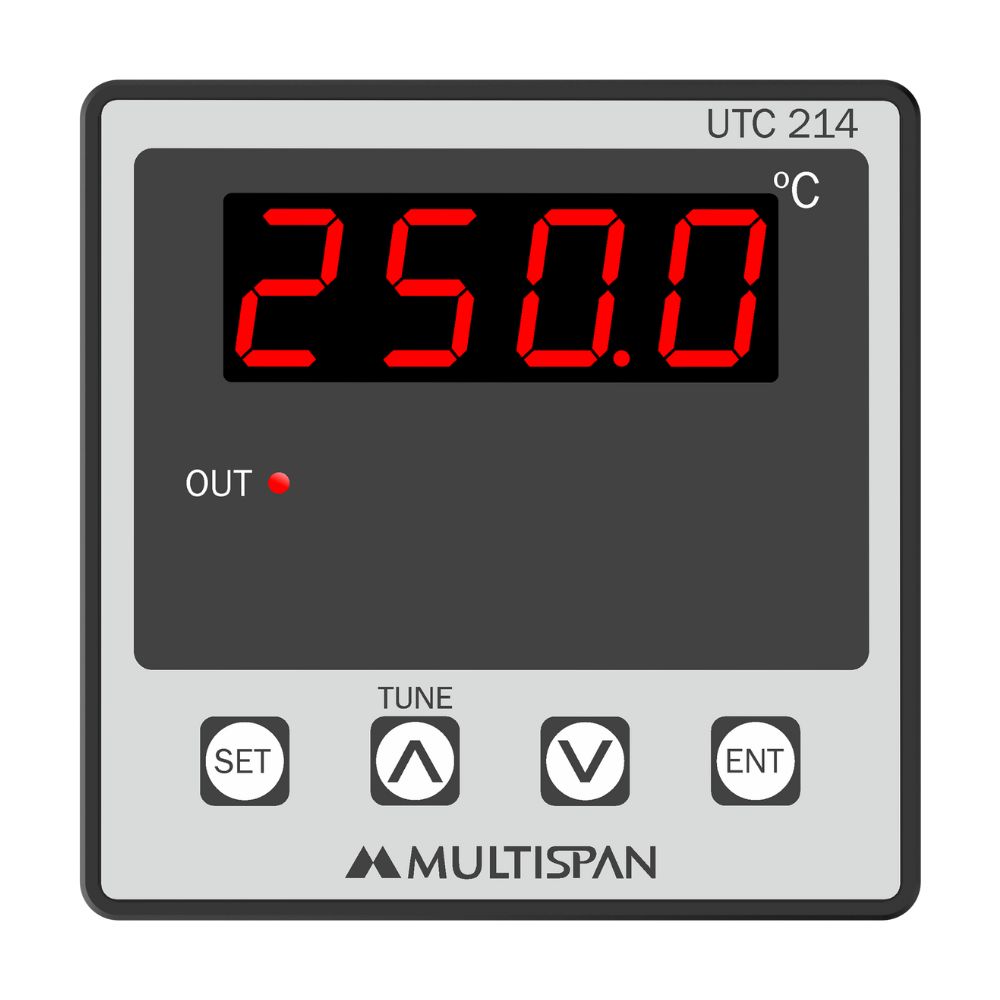

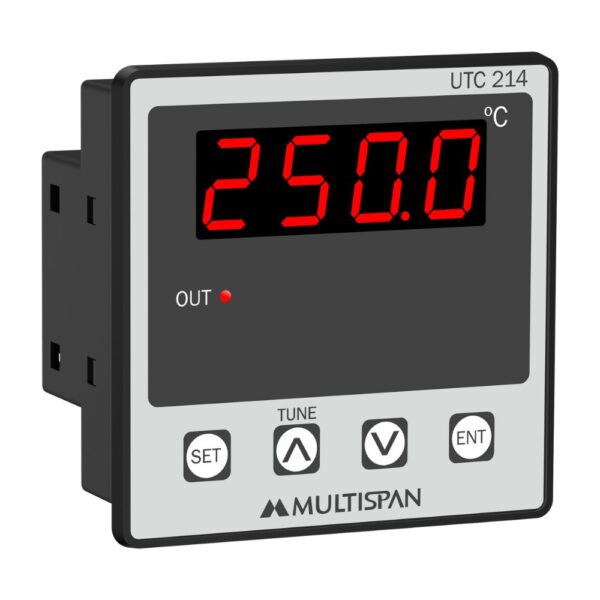

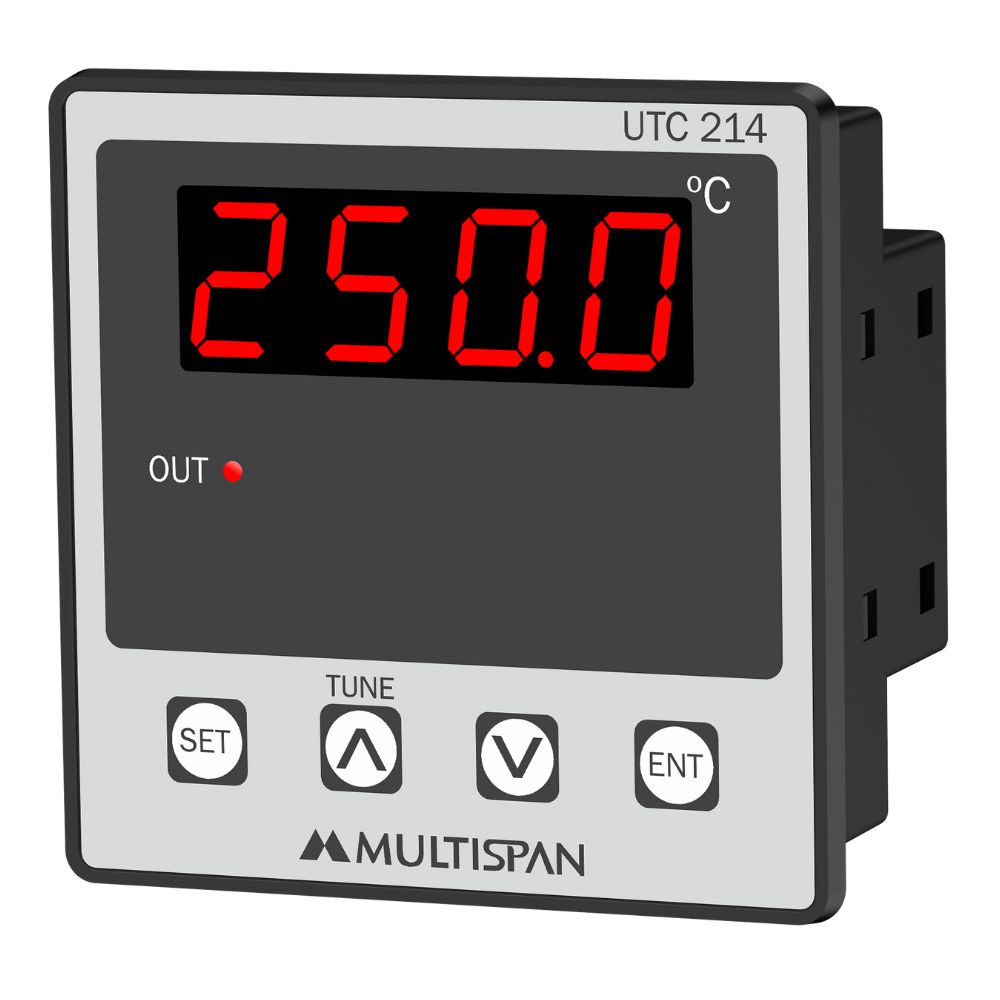

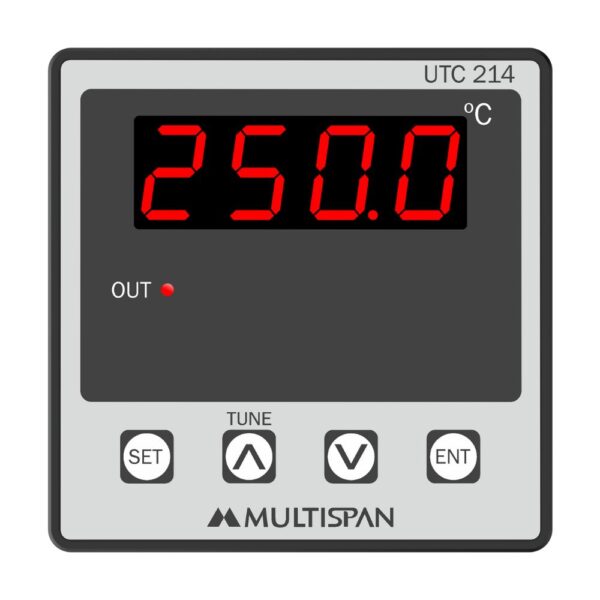

MULTISPAN PID CONTROLLER UTC-214

Description

MULTISPAN : UTC214

The UTC-214 Universal Temperature Controller is a microcontroller-based single display PID controller designed for accurate industrial temperature control applications. It supports universal inputs including J and K thermocouples and PT-100 RTD sensors, with configurable PID, time proportional, and ON-OFF control modes for heating and cooling processes. The controller features a 4-digit 7-segment LED display, auto-tuning PID function, relay and SSR outputs in parallel, and selectable temperature resolution up to 0.1°C for RTD inputs. It operates on a wide supply range of 100–270V AC

Item Description

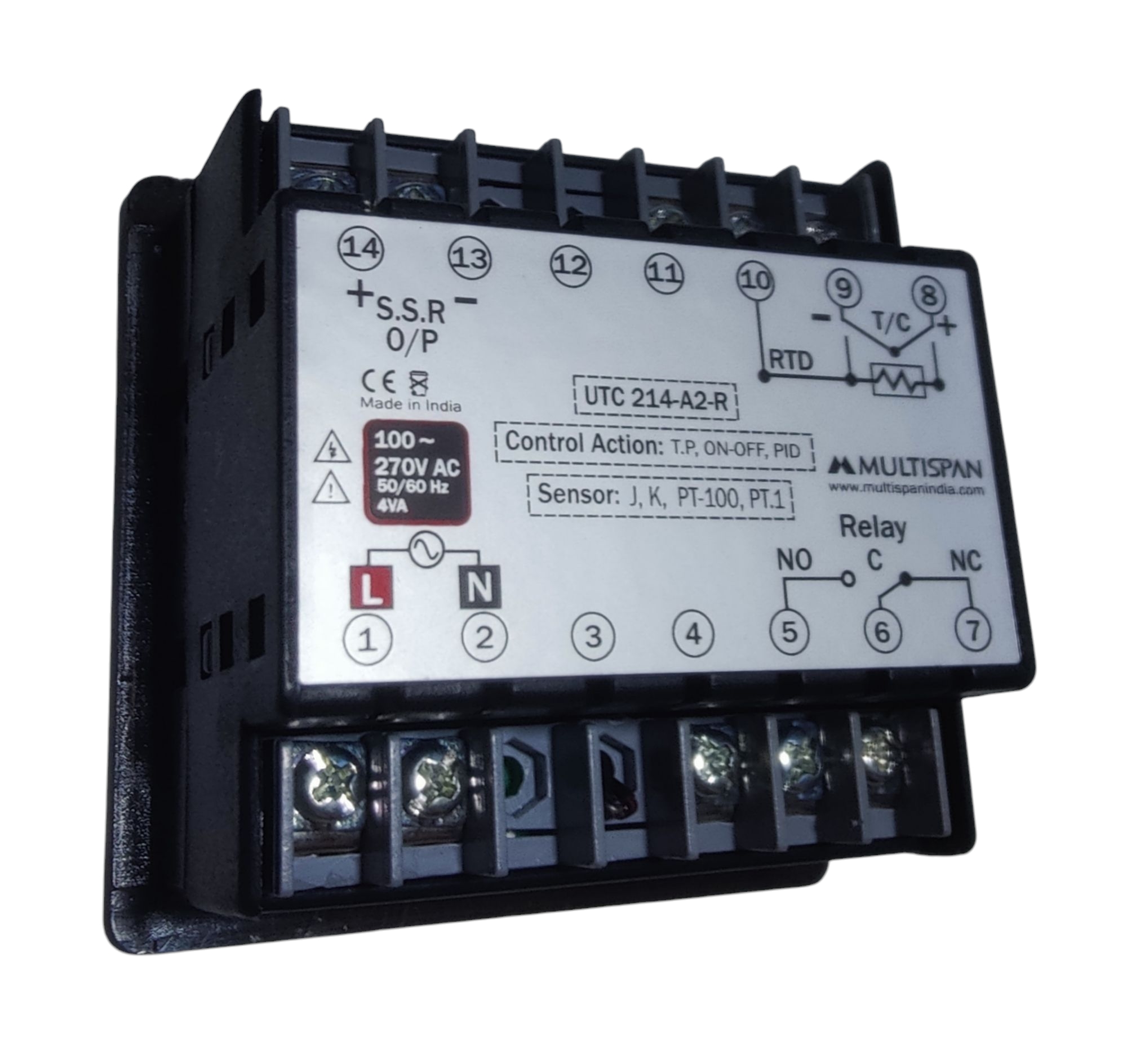

Input : J/K/Pt-100(Configurable),Output : 1 relay| |SSR,
Control action : PID/On-off (Configurable)

Supply : 100-270V AC

Features of UTC-214 Universal Temperature Controller

• • Microcontroller-based PID temperature controller
  • Universal input support for J & K thermocouples and PT-100 RTD
  • PID, ON-OFF, and time proportional control modes
  • Auto-tuning PID function for precise temperature control
  • Single 4-digit 7-segment LED display
