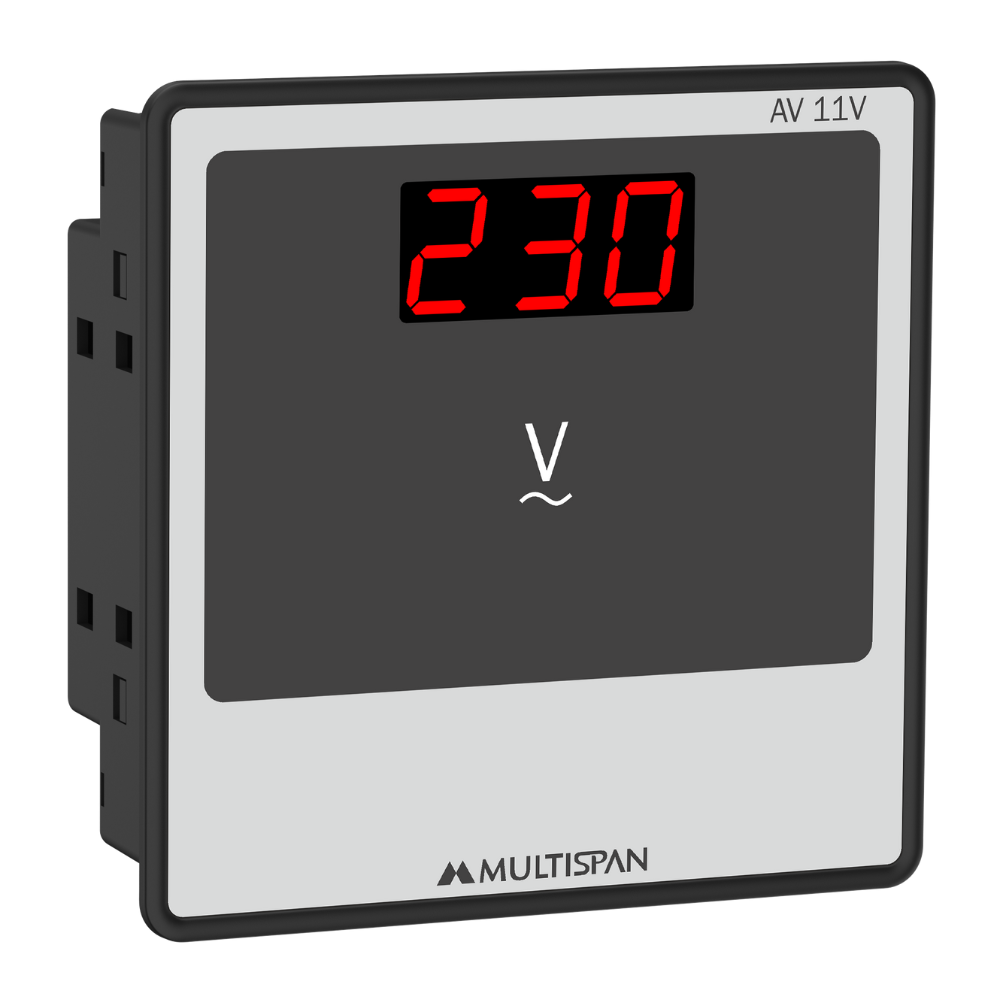

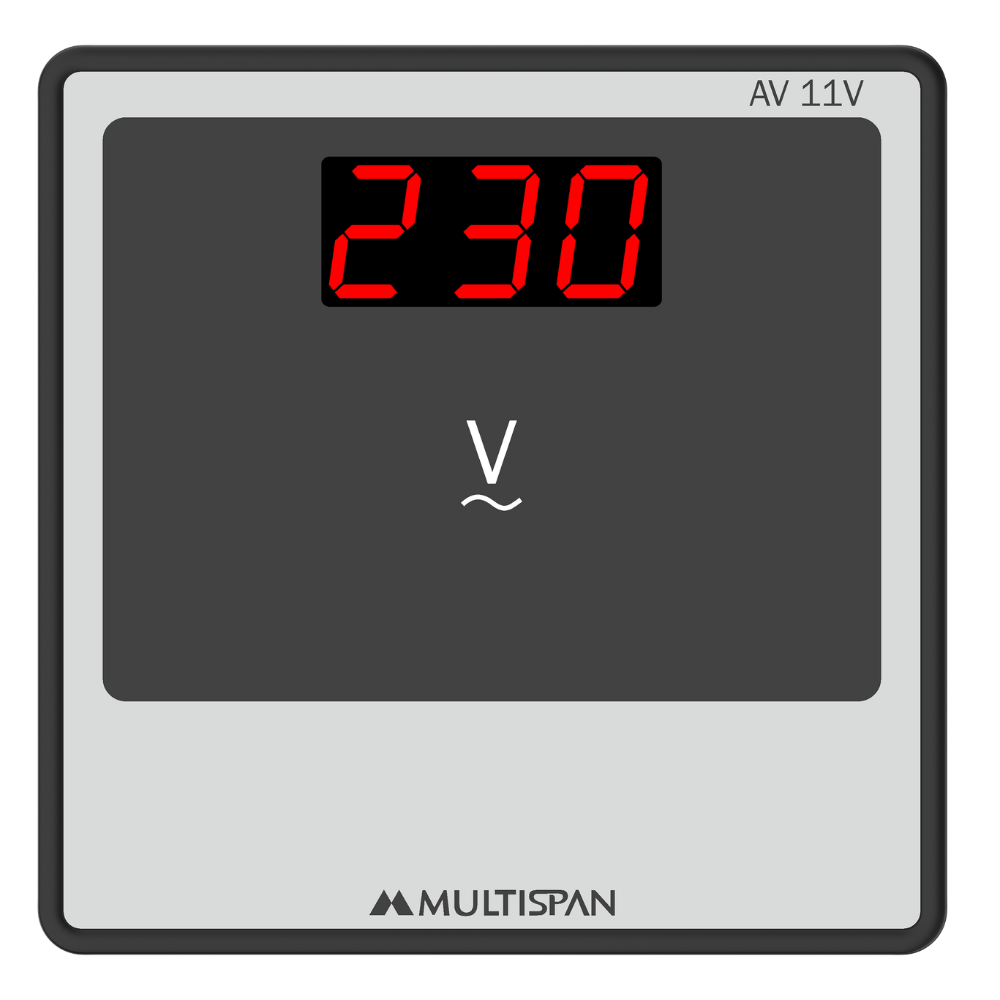

MULTISPAN DIGITAL VOLT METER AV-11V

Description

DIGITAL VOLTMETER

The Multispan AV-11V Digital Volt Meter is a single-phase AC digital panel voltmeter designed for industrial electrical panels, switchgear, generator panels, and automation systems. It features a 3-digit 0.56-inch red LED display that measures AC voltage in the range of 30V to 500V AC with Class 0.5 accuracy. The meter operates on a 1-phase, 2-wire network and provides fast sampling with low power consumption of approximately 3 VA. It is designed for panel mounting with a standard 96 × 96 mm size and requires a 92 × 92 mm panel cutout. The device has an IP65 front protection rating, making it suitable for industrial environments, and it operates effectively in temperatures from 0°C to 55°C with up to 95% non-condensing humidity. The meter is powered by 230V AC or a universal 100–270V AC supply and is commonly used in control panels, MDBs, PCCs, APFC panels, and generator monitoring applications.

ITEM DISCRIPTION

Input : 0-500V AC,

Supply : 230V AC

FEATURES : The AV-11V Digital Volt Meter offers several advanced features that make it suitable for industrial and electrical panel applications. It comes with a bright 3-digit 0.56-inch red LED display for clear voltage indication and measures AC voltage from 30V to 500V with high Class 0.5 accuracy. The meter supports single-phase, 2-wire systems and provides fast response with high sampling speed for reliable monitoring.
