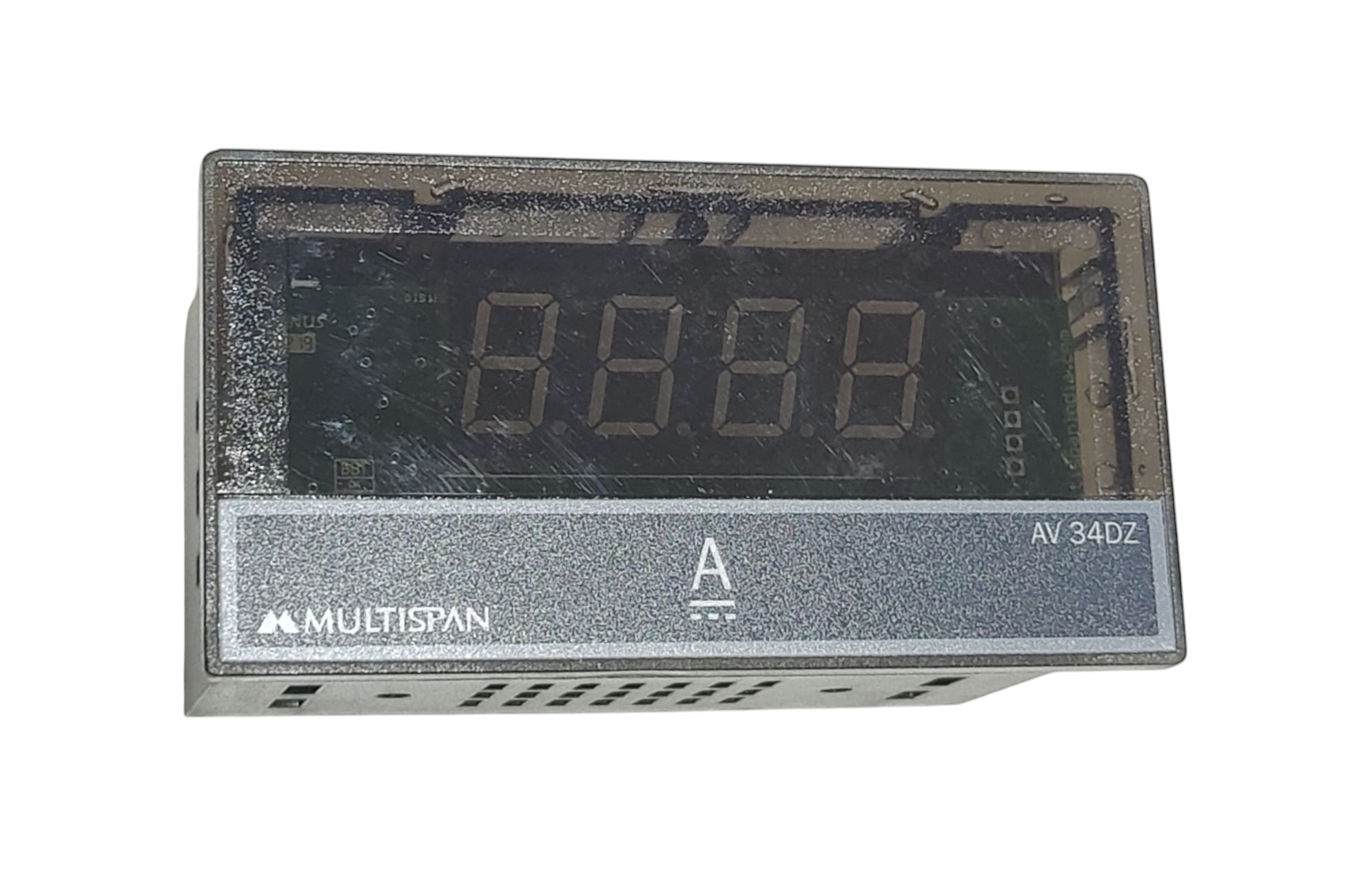

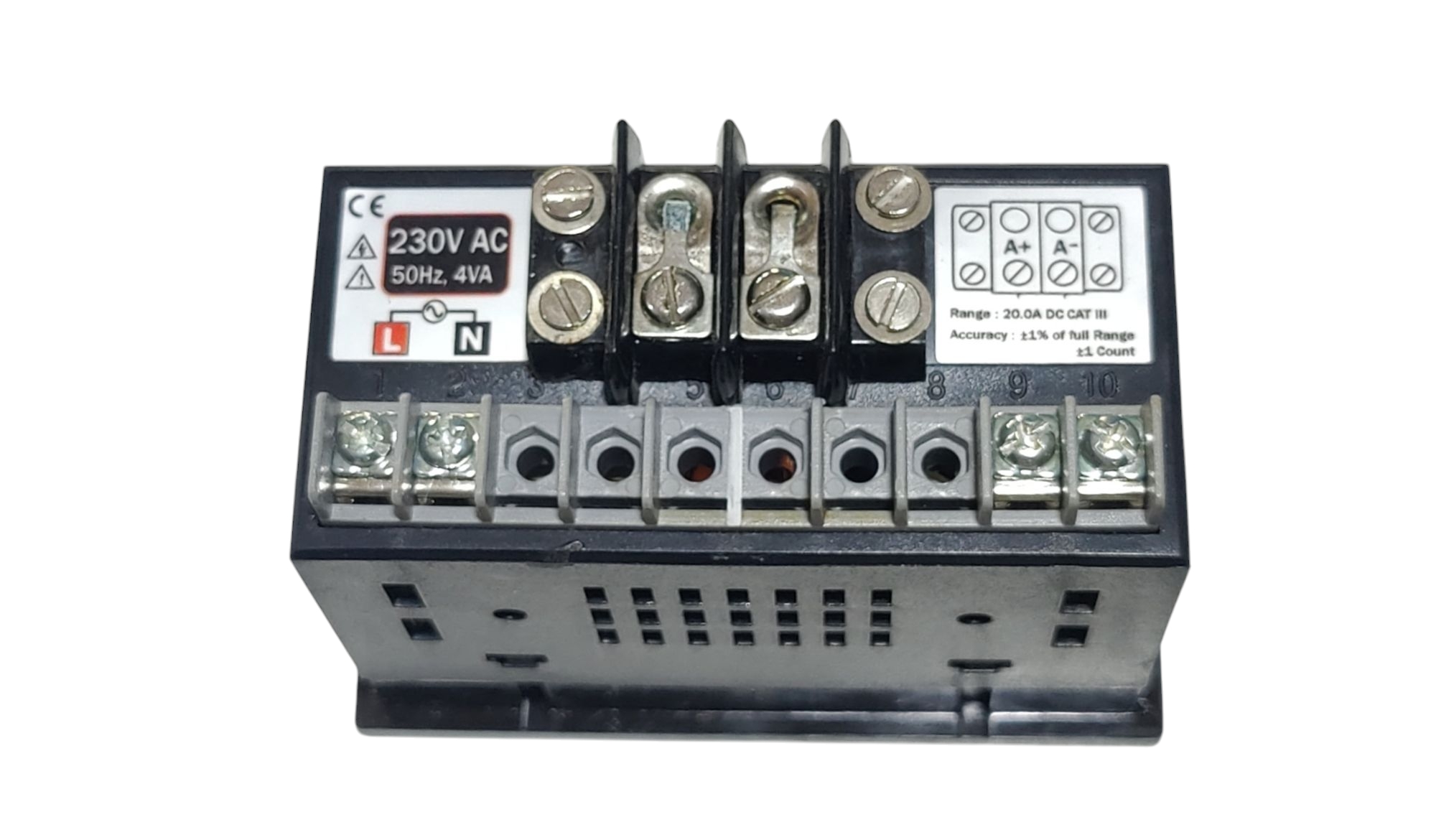

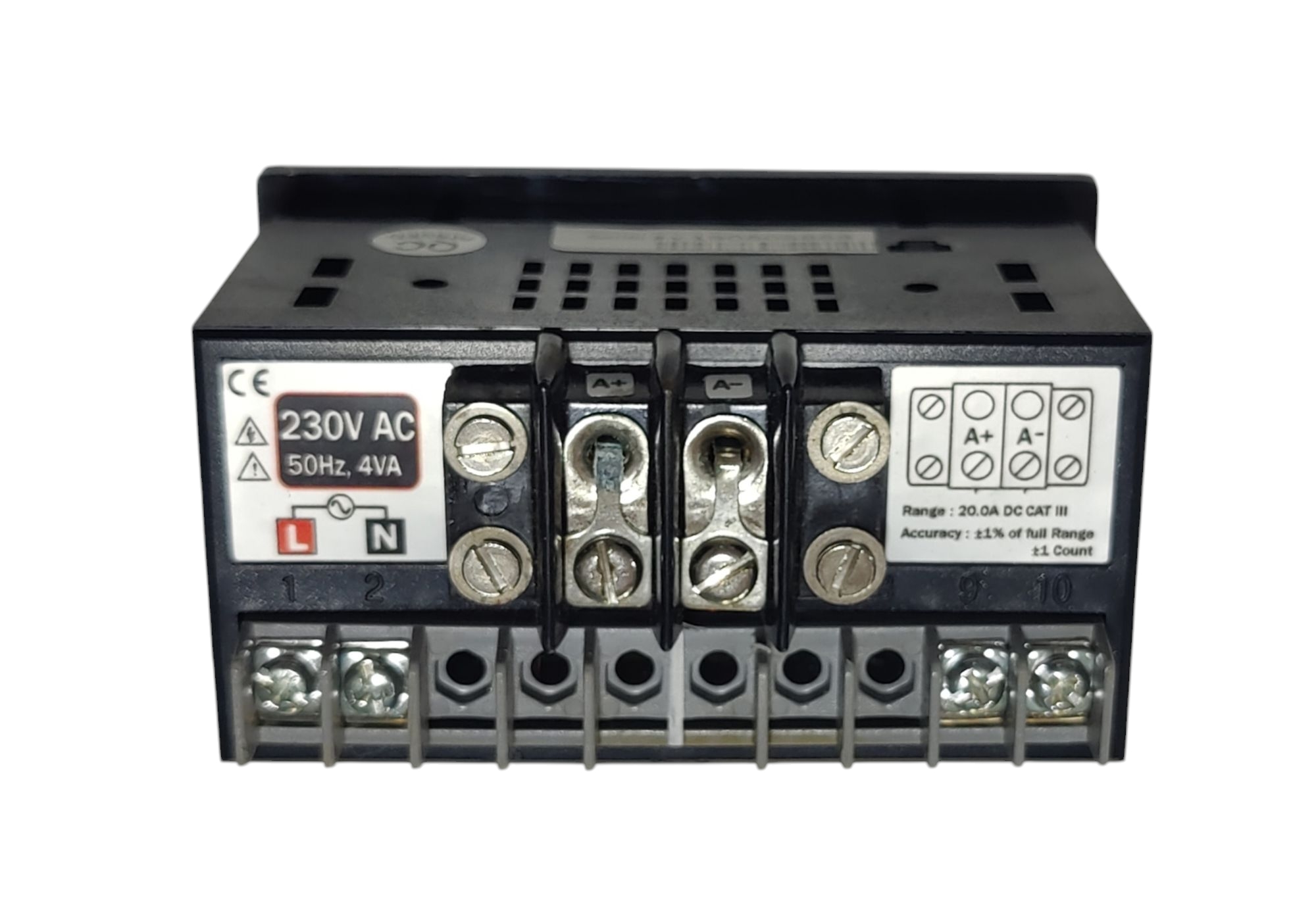

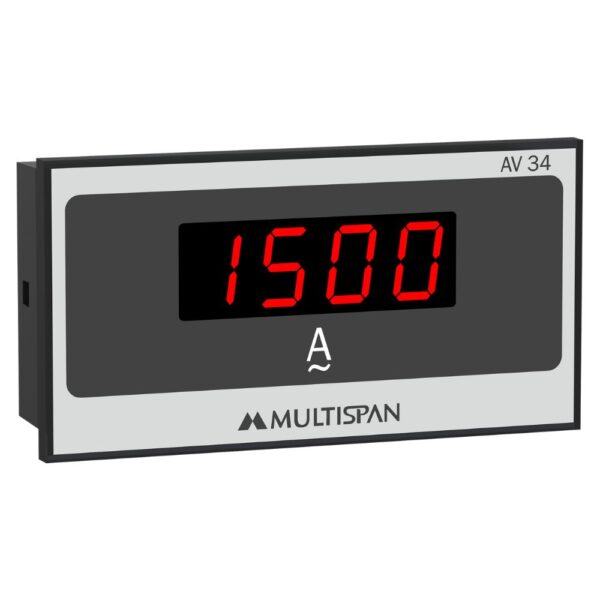

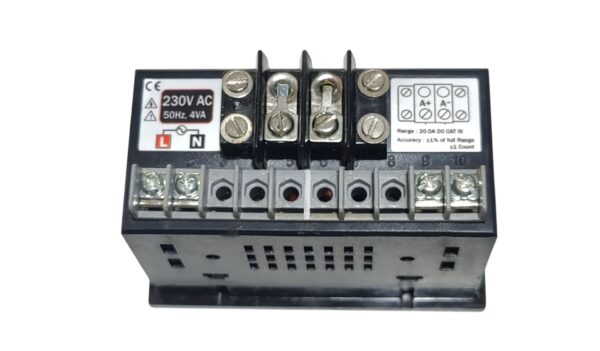

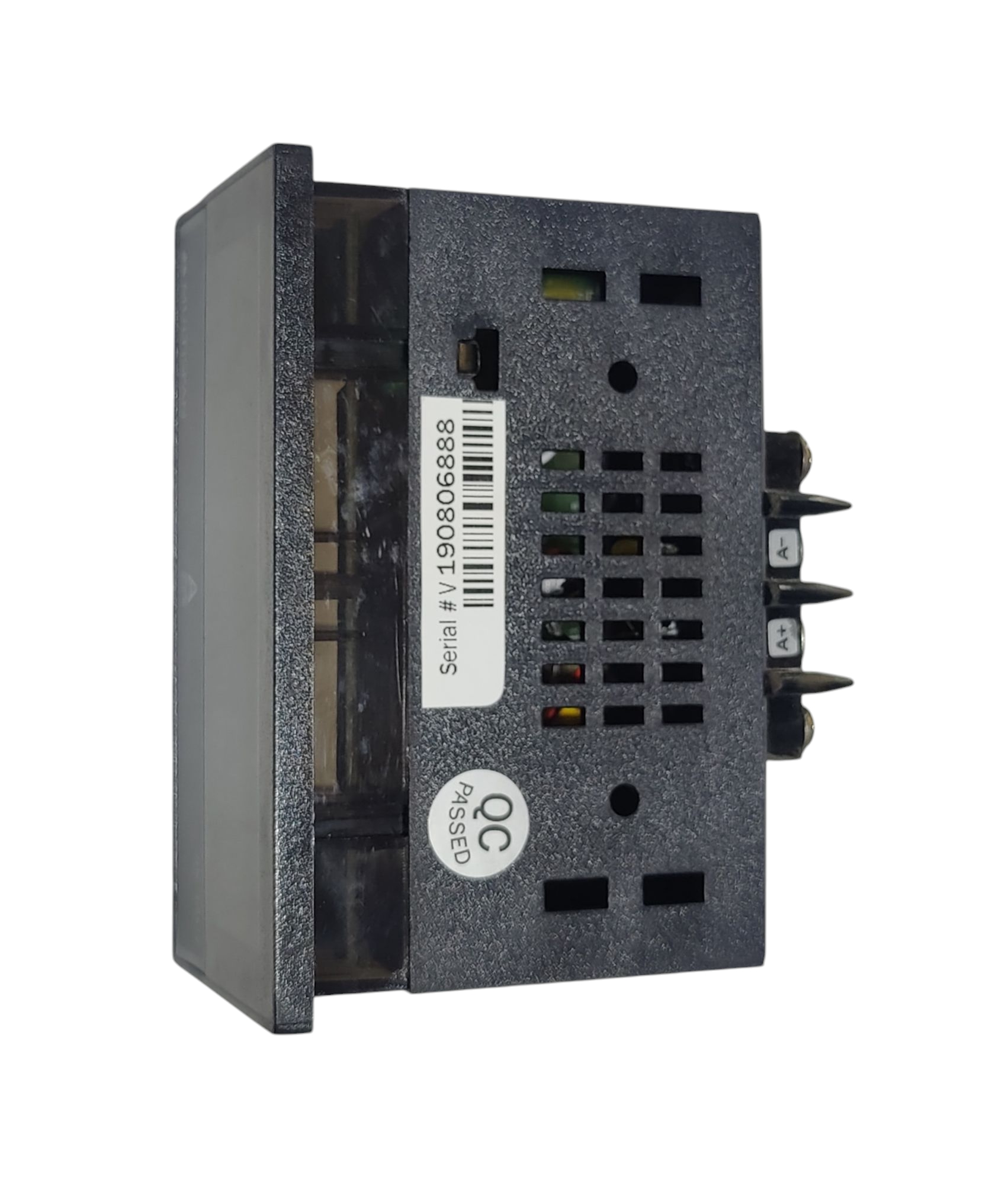

DIGITAL AMPERE METER AV-34DZ

The Multispan The AV-34DZ DC Ampere Meter is a compact digital DC ampere meter designed for accurate current monitoring in industrial and electrical applications. It features a bright 4-digit red LED display that provides clear visibility and supports direct DC current measurement ranges such as 0–20A DC as well as shunt-based inputs up to 9999A DC through a 75mV external shunt. The meter is housed in a durable 48 × 96 mm panel-mount enclosure, making it suitable for control panels, battery charging systems, power supplies, and automation equipment. It operates on a wide auxiliary supply range of 100–270V AC/DC with low power consumption and reliable performance. The device offers high accuracy, fast response, rugged ABS construction, and IP65 front panel protection against dust and moisture, ensuring dependable operation in industrial environments. It is widely used for continuous DC current monitoring in process industries, electrical panels, and instrumentation systems.

Item Description

Range : 0-20.0A DC Direct
Supply : 100 -270V AC/DC

Features of AV-34DZ DC Ampere Meter

• Bright 4-digit red LED display
• High accuracy DC current measurement
• Supports direct current and shunt input measurement
• Compatible with 75mV external shunt
• Compact 48 × 96 mm panel mount design
• Wide auxiliary supply range (100–270V AC/DC)
