DIGITAL AMPERE METER AV-24-B1

The Multispan The AV-24B1 is a compact digital panel meter designed for industrial electrical and control panel applications. It features a 4-digit 7-segment red LED display with high visibility and accuracy for electrical parameter monitoring. The meter is housed in a 72 × 72 mm panel-mount enclosure with a 68 × 68 mm panel cutout, making it suitable for switchgear, automation panels, power distribution systems, and generator control panels. It offers Class 0.5 measurement accuracy, low power consumption, and reliable operation in industrial environments. The device supports IP65 front protection for dust and moisture resistance and operates effectively in temperatures from 0°C to 55°C with up to 95% non-condensing humidity. The AV-24 series meters are commonly powered by 230V AC or universal 100–270V AC/DC auxiliary supply depending on the model variant.

ITEM DISCRIPTION

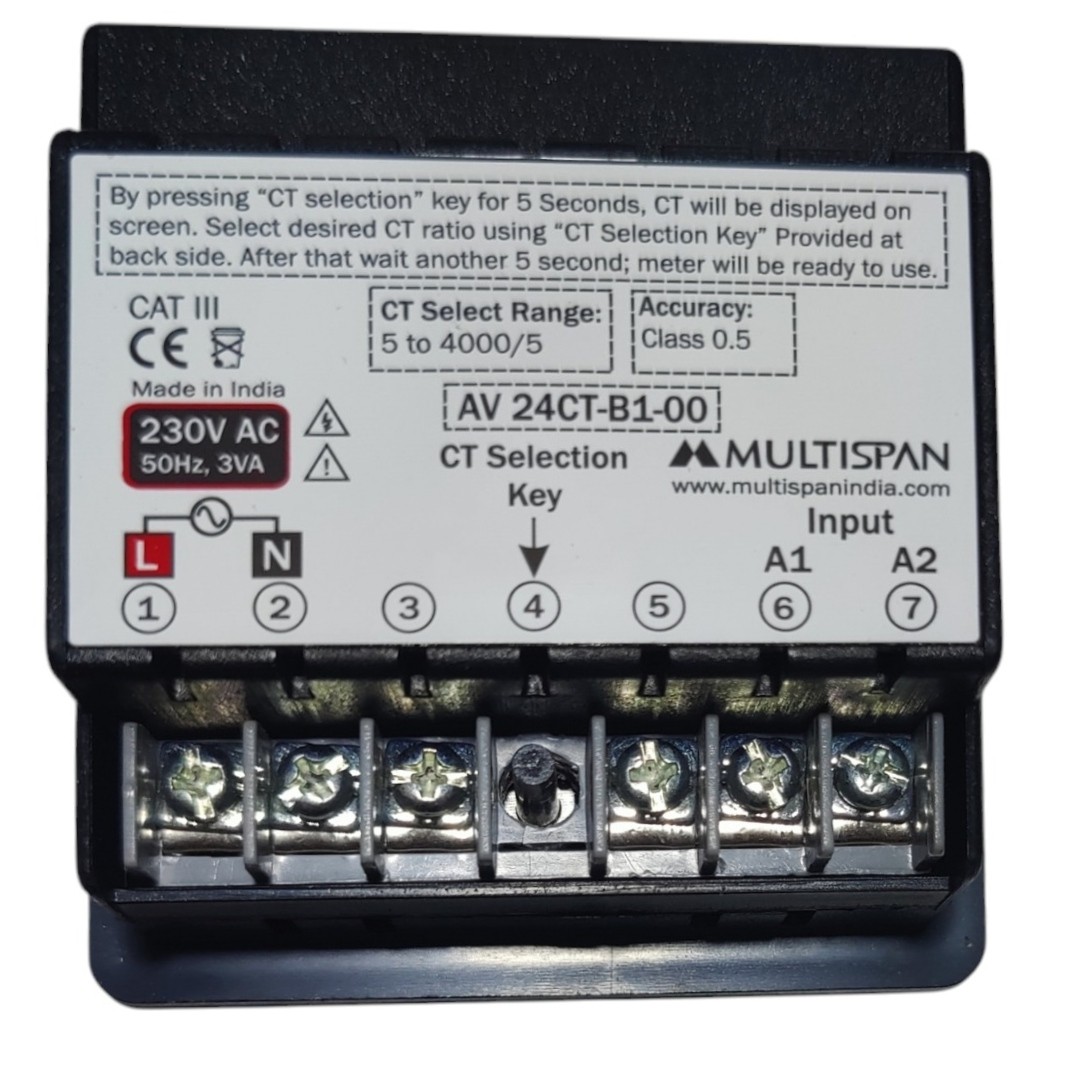

Input : O-5A AC Direct OR CT Selectable upto 5/5 To 4000/5A,
Supply : 230V AC

FEATURES :

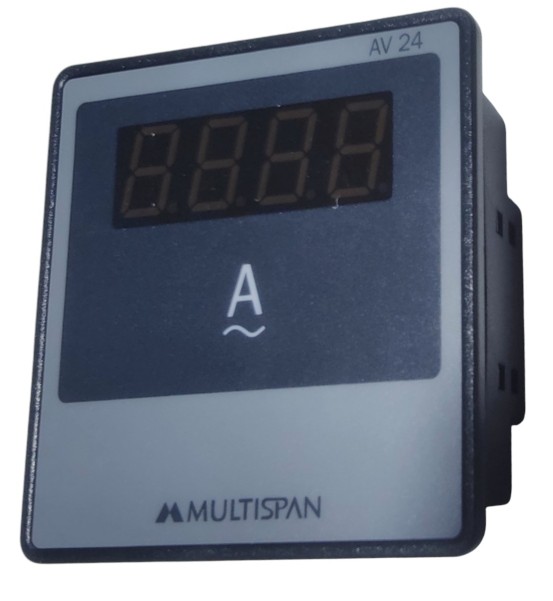

• Bright 4-digit red LED display
• High measurement accuracy (Class 0.5)
• Easy installation with standard panel cutout
• Low power consumption
• Fast response and reliable performance
